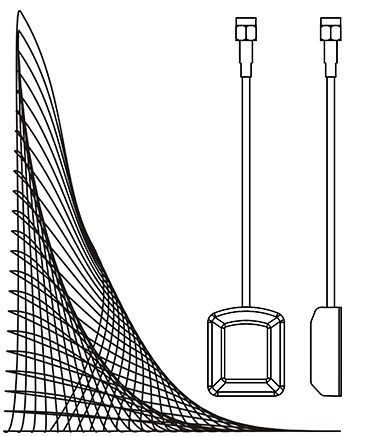

GT5 Plug External Gps Antenna For Car Double Sided Tap Installation

GT5 plug car gps antenna black plastic magnetic mount for Chrysler Dodge Jeep car

ITEM NO: CAT-4006F

(i) Dieletric Antenna

Center Frequency 1575.42MHz±3 MHz

V.S.W.R 1.5:1

Band Width ±5 MHz

Impendence 50 ohm

Peak Gain ＞3dBic Based on 7×7cm ground plane

Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)

Polarization RHCP

(ii) LNA/Filter

LNA Gain (Without cable) 28dB Typical

Noise Figure 1.5dB

Filter Out Band Attenuation (f0=1575.42 MHZ)

7dB Ｍin f0+/-20MHZ ;

20dB Ｍin f0+/-50MHZ;

30dB Ｍin f0+/-100MHZ

V.S.W.R ＜2.0

DC Voltage 3.0V to 5.0V

DC Current 12mA Max

(iii)Mechanical

Weight ＜110gram

Size 44×35.5×14mm

Cable RG174 5meters, 7 meters

Connector GT5

Mounting Magnetic base

Housing Black

(iv)Environmental

Working Temp -40℃~+85℃

Storage Temp. -45℃~+100℃

Vibration Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity Humidity95%~100%RH

Weatherproof 100%Waterproof

1. Working Voltage: DC3.0V~5.0V 2. Working Current: 10mA~30mA 3. Center Frequency: L1(1575.42MHz±1.023MHz) 4. Output Impedance: 50 OHM 5. Outer Band Attenuation: 20dB @ 1575.42MHz±50MHz 6. Amplifier Gain: 29dB±3dB 7. Noise Figure: ≤1.5dB 8. V.S.W.R: ≤1.5:1 (MAX 2.0) @ 1575.42MHz

Quality assurance:

Warranty Duration: 1 years
Warranty Type: Manufacturer Warranty
