Waterproof GSM Magnetic Antenna , 3g Car Antenna M14 Screw Thread Installation

Product Description:

water proof design car GSM antenna with GPS and Fakra male connector fit Citroen Peugeot

Item no.: CAT-4112

GSM parameters:

Frequency(MHz):GSM 824-1910
VSWR ≤2:1
Gain: 3db
Polarization:Vertical
Max Power(W):50
Input Impedance(Ω):50
Antenna Colour:Black
Connector: Fakra male etc.​ SMA/FME/MMCX/BNC/FAKRA

                    TNC/MCX/SSMB/SMB/SMC

Cable : RG-174 // 5000 mm
Mounting:M14 screw thread
Direction:Omni-Directional
Working Temp:-40℃~+80℃
Storage Temp:-40℃~+80℃

GPS parameters:

Frequency(MHz): 1575.42±3
VSWR ≤2:1
Gain: 2.5db
Polarization:Vertical
Max Power(W):50
Input Impedance(Ω):50
Antenna Colour:Black
Connector: Fakra male etc.SMA/FME/MMCX/BNC/FAKRA

                    TNC/MCX/SSMB/SMB/SMC

Cable : RG-174 // 5000 mm

Mounting:M14 screw thread
Direction:Omni-Directional
Working Temp:-40℃~+80℃
Storage Temp:-40℃~+80℃

Quality assurance:



Warranty Duration: 1 years
Warranty Type: Manufacturer Warranty





FAQ:



• Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.

• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 7-15 days to produce the products.

• Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated.

• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .

• Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now !!! Free sample and best answers are waiting for you.





Product details:

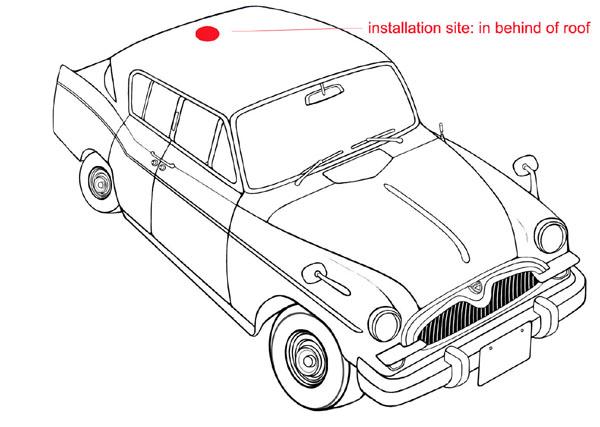

Installation position as shown in the figure below:
